TS4
TS4 Shimano Alivio 27-speed / Disc
Standard color *:
black matt
Find a dealer » Compare »

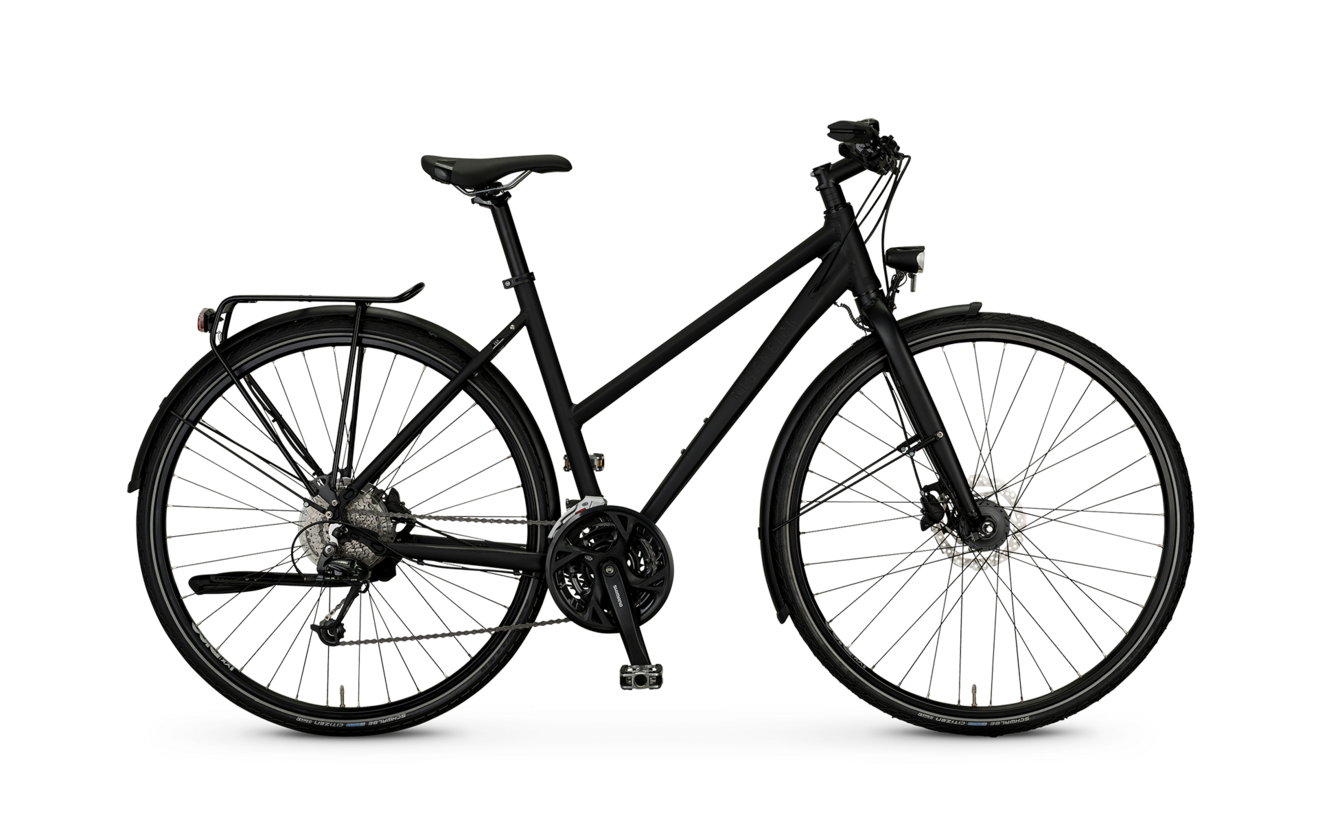

TS4

Shimano Alivio 27-speed / Disc

The TS4 powder-coated in matt black combines high-quality components with a particularly attractive price. The reliable Shimano Deore gear system allows the TS4 to master even steep slopes without any problems. Downhill, the hydraulic disc brakes - also from Shimano - grip powerfully and safely.
As with all Rabeneick models, the design of the TS4 is clear and sophisticated. Only at second glance do fine details, such as subtle lettering on the frame or saddle, become apparent.

And should the tour last until late in the evening, or the end of your workday take longer than expected, you can rely on the hub dynamo and the 70 lux of the LED headlight to guide you in the dark.



* Actual product colours may differ for technical reasons.

Specs

Frame
Aluminum 6061, 28" Trekking Speed
Frame size
Diamant 28": 50, 55, 60 cm
Trapez 28": 45, 50, 55 cm
max load
140 kg
Colour
black matt
Headset
FSA, 1 1/8“, a-head, semi-integrated
Fork
28" aluminum,
Rear derailleur
L-Twoo Alivio RD-M3100, 9-speed
Front derailleur
Shimano Altus FD-M370, 3-speed
Break
Radius BH-M960 (front 160 mm / rear 160 mm) Disc brake
Headlights
Jing Yi LED plastic, 70 LUX including standinglight
Rear light
AXA Slim Steady LED, including standinglight
Luggage rack
Racktime Light-it, with spring flap
Saddel
Selle Royal Essenza
Seat pillar
Promax, patent, aluminum, 31,6 mm, 300 mm
Pedal
Marwi SP-811
Stand
Pletscher Comp Zoom, rear kickstand
Chain guard
Shimano chainguard
Mudguard
SKS, plastic
Weight
14,5 kg
Stems
Promax DA-250, aluminum, 31,8 mm
Handlebar
Promax HB-3188, aluminum, 640 mm
Handlebar grip
Westphal Grabsolute 447, with clamp
Gearshift
Shimano Altus SL-M2010, 3-/9-speed, with gear display
Break lever
Radius BH-M960, 3-finger brake lever
Tyres
Schwalbe Citizen, 37-622, reflex
Spoke wheel
2,0 mm, black
Front wheel grain
Shimano DH-3D37, hub dynamo, Centerlock, 36 holes
Rear hub
Joytech D762TSE, 36 holes
Gear rim
Shimano Acera CS-HG201, 11-34 teeth
Chain
KMC X9
Bottom bracket
Thun Topaz
Crankset
Shimano Acera FC-M371, 170 mm, 48/36/26 teeth
Translation (front : back)
48/36/26 teeth : 11-34 teeth
Show all specs + Show less specs Product data sheet
