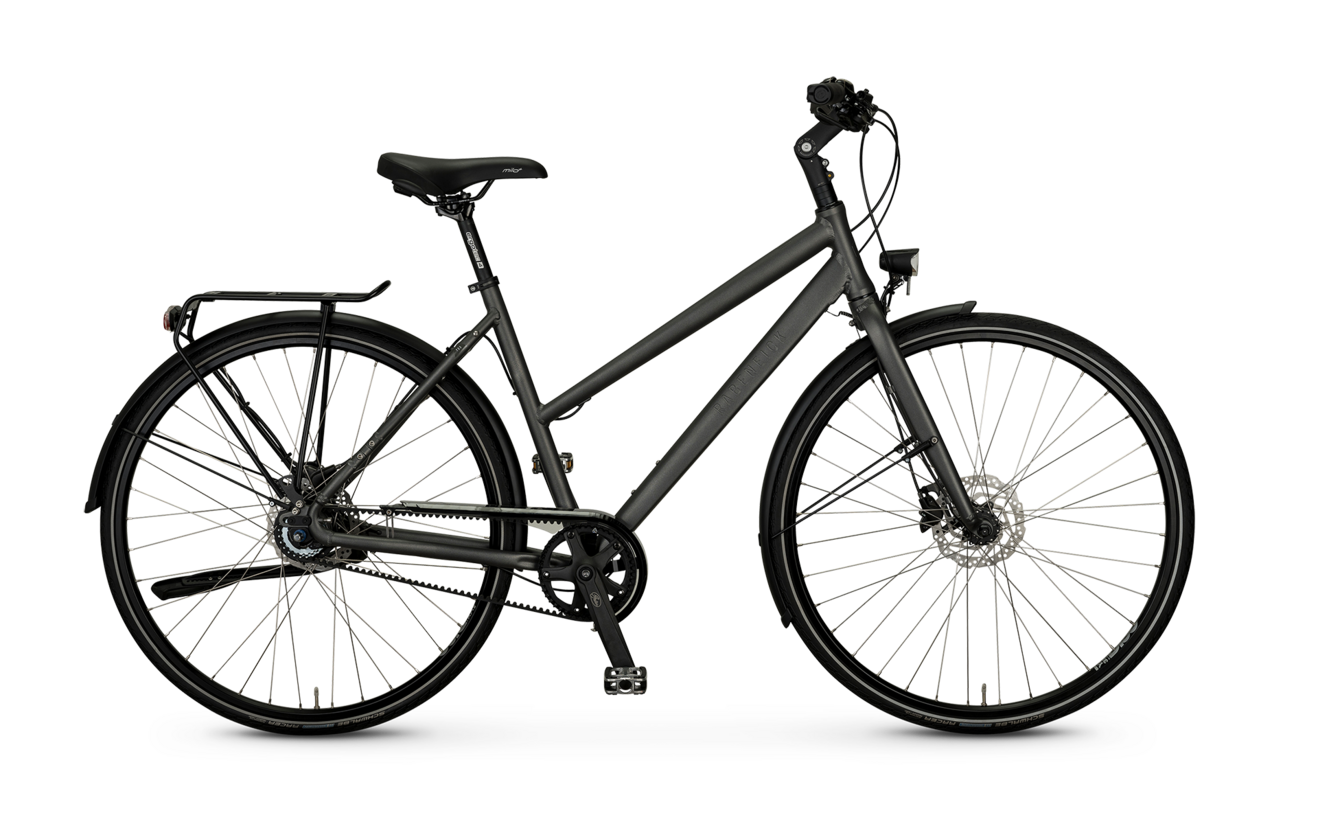

TS5
TS5 Shimano Nexus 8-speed freewheel / Disc / Gates
Standard color *:
slate matt
Find a dealer » Compare »

TS5

Shimano Nexus 8-speed freewheel / Disc / Gates

Available in two variants, the TS5 is the mid-range model of the speed series and impresses with its outstanding price-performance ratio. In this deluxe version, a Shimano Nexus 8-speed hub gear combined with a Gates belt drive ensures top shifting comfort and minimum maintenance at its greatest degree. The extremely stiff, powder-coated aluminium frame guarantees loss-free pedalling and takes the power directly onto the asphalt. The design of the TS5 is deliberately discreet; fine details, such as subtle lettering on frame or saddle, are only noticed at a second glance.


The Schwalbe Marathon Supreme tyres ensure first-class riding comfort, while Shimano hydraulic disc brakes and a high-quality LED lighting system ensure safety.

* Actual product colours may differ for technical reasons.

Specs

Frame
Aluminum 6061, 28" Trekking Speed
Frame size
Diamant 28": 50, 55, 60 cm
Trapez 28": 50, 55 cm
max load
140 kg
Colour
slate matt
Headset
FSA, 1 1/8“, a-head, semi-integrated
Fork
28" aluminum,
Rear derailleur
Shimano Nexus 8-speed freewheel
Front derailleur
N.V.
Break
Radius BH-M960 (front 160 mm / rear 160 mm) disc brake
Headlights
Jing Yi LED plastic, 70 LUX including standinglight
Rear light
AXA Slim Steady LED, including standinglight
Luggage rack
Racktime Light It, with spring flap
Saddel
Selle Royal Essenza
Seat pillar
Humpert Ergotec Atar, patent, 27,2 mm, 300 mm
Pedal
Marwi SP-823
Stand
Pletscher Comp Zoom, rear kickstand
Chain guard
Gates chainguard
Mudguard
SKS, plastic
Weight
14,8 kg
Stems
a-head, angle adjustable, aluminum 31,8 mm
Handlebar
Promax HB-3188, aluminum, 640 mm
Handlebar grip
Herrmans DD37, with clamp
Gearshift
Shimano Alfine, 8-speed, Trigger
Break lever
Radius BH-M960, 3-finger brake lever
Tyres
Schwalbe Marathon Racer, 35-622, reflex
Spoke wheel
2,0 mm, black
Front wheel grain
Shutter Precission PL-8, hub dynamo, Centerlock, 36 holes
Rear hub
Shimano Nexus 8-speed SG-C6001-8D, Centerlock, 36 holes, freewheel
Gear rim
Gates CDN, 24 teeth
Chain
Gates CDN belt
Bottom bracket
Thun Zumba
Crankset
Gates CDN, 170 mm, 46 teeth
Translation (front : back)
46 teeth : 24 teeth
Show all specs + Show less specs Product data sheet
