TC-E Carry
TC-E Carry Shimano Deore 10-speed / Bafang / 252Wh / Disc
Standard color *:
black matt
Find a dealer » Compare »

TC-E Carry

Shimano Deore 10-speed / Bafang / 252Wh / Disc

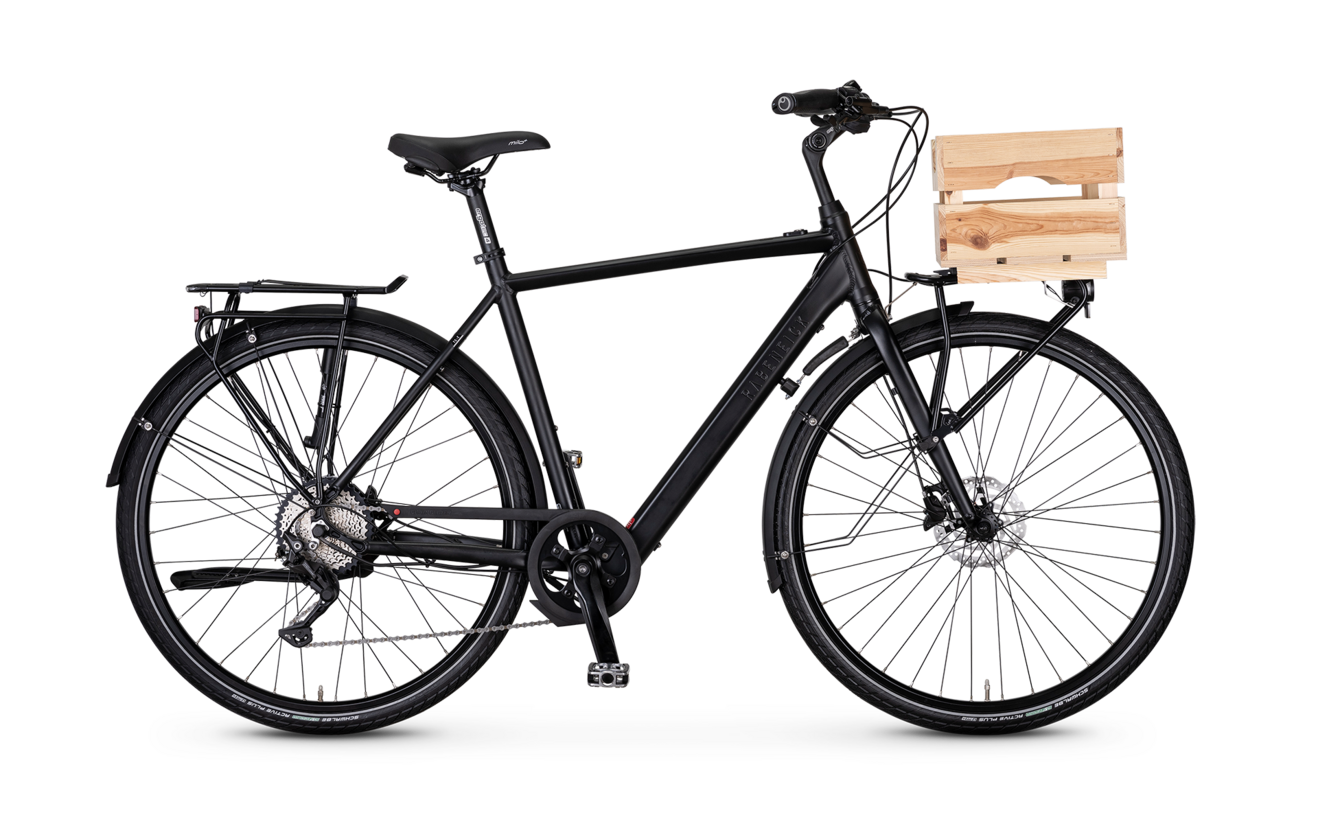

The E-Trekking bike with the practical click box made of real wood.

Only very small details reveal that the TC-E Carry is an e-bike. The rear wheel drive is similar in size to a hub dynamo, the battery is completely integrated in the down tube and the charging socket is hidden above the bottom bracket, protected from dirt and weather.
Smart and easy: The e-bike is operated via smartphone using the free Rabeneick My Bike app, without any additional display or control element. Here too, less is more.
For the trekking e-bike, which is available in two frame shapes, all components were selected with a view to purist design. The TC-E Carry combines a sporty character with great suitability for everyday use - as a carry model it is also suitable for shopping or weekend excursions. The proven Shimano Deore with 10 gears offers the best shifting performance, the aluminium frame ensures top riding characteristics through high rigidity. Comfort is provided by Schwalbe Energizer Active Plus tires, a saddle from Selle Royal and the multiple award-winning GP1 grips from Ergon.

Disc brakes from Shimano decelerate precisely and ensure safe handling. The LED light system by Herrmanns (front) and Busch & Müller (rear), the practical Racktime luggage racks - in the front with wooden click box - as well as SKS mudguards with edge protectors complete the TC-E Carry's equipment suitable for everyday use.


Find out more about Rabeneick e-bikes with the invisible E - click here!


In addition to the standard colours, this model can also be ordered in special colours for an additional fee. For more details about the cost of colour customisation, ask your local dealer.

For more information on the choice of colours and an overview of the possible options click here.


* Actual product colours may differ for technical reasons.


Aluminum 6061, 28" Trekking Comfort
Frame size
Diamant 28": 50, 55, 60 cm
Trapez 28": 50, 55 cm
max load
120 kg
black matt
Chin Haur, 1 1/8” semi-integrated
28" aluminum fork,
Rear derailleur
Shimano Deore RD-M4120, 10-speed
Front derailleur
Shimano BR-MT200 (front 160 mm / rear 160 mm) disc break
Herrmans MR8-E, 60 LUX including standinglight
Rear light
Busch & Müller integrated in the carrier, including standinglight
Luggage rack
Racktime Shine Evo Tour, IMM-system, with spring clamp
Selle Royal Milo Plus
Seat pillar
Kalloy SP-DC1, patent, aluminum, 31,6 mm, 300 mm
Marwi SP-811
Pletscher Comp Zoom, rear kickstand
Chain guard
Hebie chainglider
SKS, plastic
24,4 kg
Humpert Ergotec Octopus, angle adjustable
Humpert Ergotec Ladytown, 620 mm
Handlebar grip
Ergon GP1, with clamp
Shimano Deore SL-M4100, 10-speed
Break lever
Shimano Altus, 3-finger brake lever
Schwalbe Energizer Active Plus, 47-622, reflex
Spoke wheel
Niro 2,0 mm, black
Front wheel grain
Shimano HB-TX505
Rear hub
Bafang G20 rear-wheel motor
Gear rim
Shimano Deore CS-HG500, 11-42 teeth
Bottom bracket
Bafang torque sensor
Miranda aluminum, 170 mm
Translation (front : back)
front 42, rear: 11-42
Show all specs + Show less specs Product data sheet
