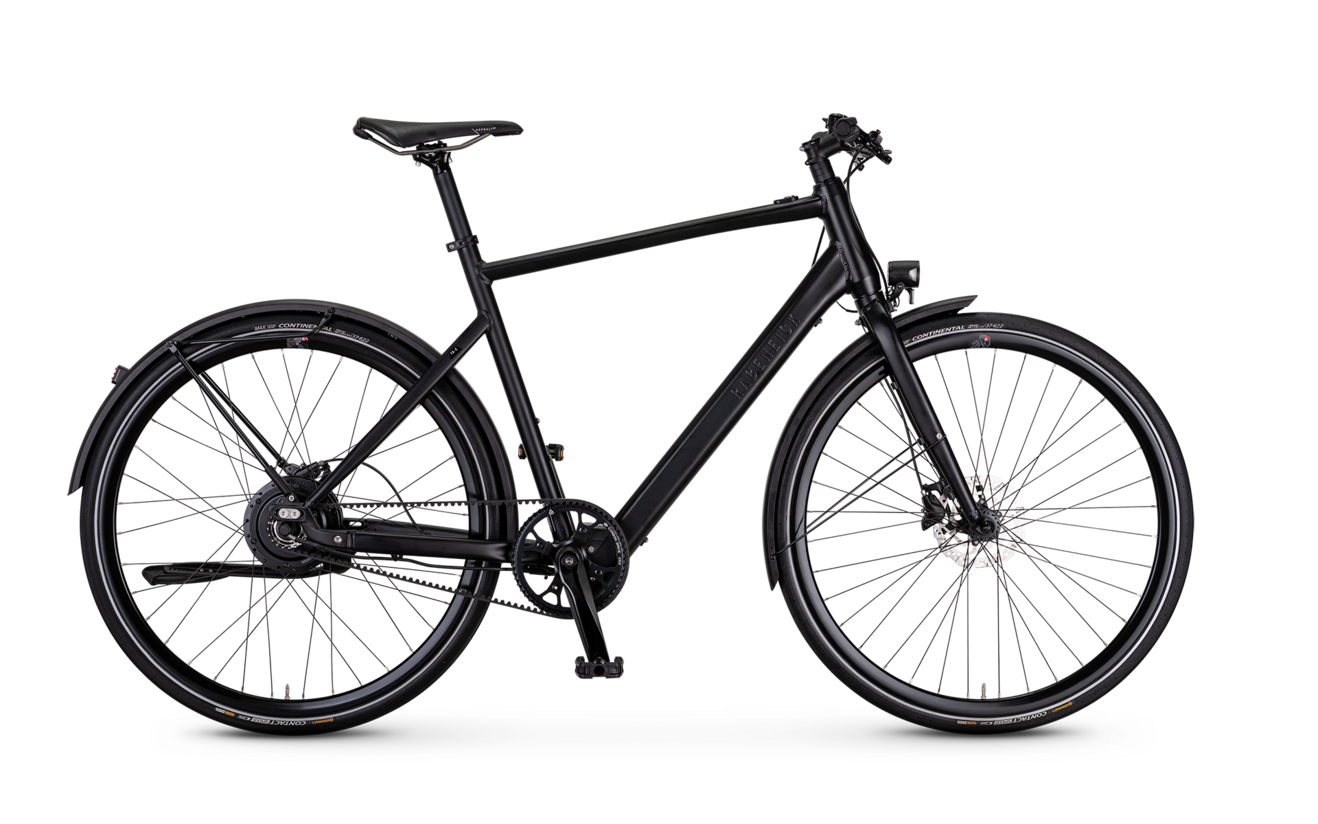

TX-E Singlespeed / Bafang / 252Wh / Disc / Gates
Standard color *:
black matt
Find a dealer » Compare »


Singlespeed / Bafang / 252Wh / Disc / Gates

"Oh, this is an e-bike?" - this and other similar questions will have to be answered more frequently by owners of the TX-E.

As a single speed bike with Gates belt drive, the TX-E is the uncompromising symbiosis of optical reduction and innovative e-bike technology. The drive components are integrated into the bike and barely visible: The rear-wheel drive with 250 W is hardly bigger than a hub dynamo, the 252 Wh battery is completely integrated in the down tube and the charging socket - protected from dirt and weather - is hidden above the bottom bracket. The bike is controlled very easily via smartphone using the Rabeneick My Bike-App - without requiring any additional display or control element.

Less is more: In addition to the invisible E, its low weight is also  electrifying - it only weighs 18.6 kg, depending on the frame size. With its puristic design and the elimination of superfluous equipment details, the TX-E is predestined for fast-paced asphalt rides. The extremely lightweight, rigid aluminium frame, hydraulic disc brakes and Contact Speed tyres from Continental allow dynamic handling and reliable control - even at high speeds. A clever urban feature: Shopping bags or luggage can be attached to the Wingee mudguards equipped with inconspicuous saddlebag supports.

Find out more about our Rabeneick e-bikes with the invisible E - click here!


In addition to the standard colours, this model can also be ordered in special colours for an additional fee. For more details about the cost of colour customisation, ask your local dealer.
For more information on the choice of colours and an overview of the possible options click here.


* Actual product colours may differ for technical reasons.


Aluminum 6061, 28" Trekking Urban
Frame size
Diamant 28": 50, 55 cm
max load
120 kg
black matt
FSA, 1 1/8“ semi-integrated
28" aluminum fork,
Rear derailleur
Front derailleur
Shimano BR-MT200 (front 160 mm / rear 160 mm) disc break
Herrmans MR8-E, 60 LUX including standinglight
Rear light
Supernova E3 tail light, including standinglight
Luggage rack
Wingee with carrier stay
Selle Royal Asphalt
Seat pillar
Kalloy SP-DC1, patent, aluminum, 31,6 mm, 300 mm
Marwi SP-823
Pletscher Comp Zoom, rear kickstand
Chain guard
Alumee, aluminum
18,6 kg
Promax DA-250, aluminum
Levelnine Race Flat Bar, aluminum , 9°, 660 mm
Handlebar grip
Herrmans Grit D33, with clamp
Break lever
Shimano Altus, 3-finger brake lever
Continental Contact Speed, 37-622, reflex
Spoke wheel
Niro 2,0 mm, black
Front wheel grain
Shimano HB-TX505
Rear hub
Bafang G20 rear-wheel motor
Gear rim
Gates CDX, 20 teeth
Gates CDN belt drive
Bottom bracket
Bafang torque sensor
Lasco aluminum, 170 mm
Translation (front : back)
front 55, rear: 20
Show all specs + Show less specs Product data sheet
