TC-E
TC-E Shimano Deore 10-speed / Bafang / 252Wh / Disc
Standard color *:
black matt
Find a dealer » Compare »

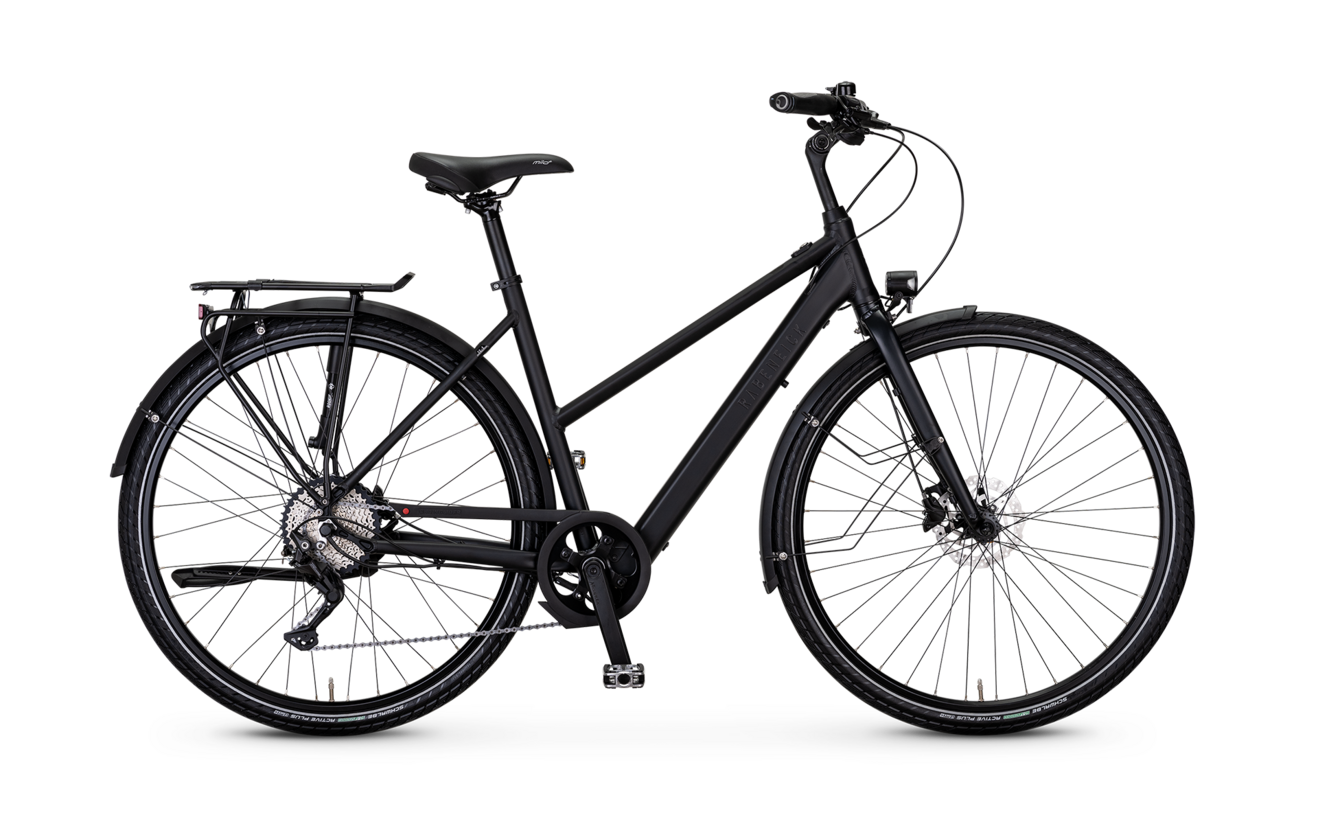

TC-E

Shimano Deore 10-speed / Bafang / 252Wh / Disc

The e-trekking bike, with only very small details revealing that the TC-E is an e-bike. The rear wheel drive is similar in size to a hub dynamo, the battery is completely integrated in the down tube and the charging socket is hidden above the bottom bracket, protected from dirt and weather.

Smart and easy: The e-bike is operated via smartphone using the free Rabeneick My Bike app, without any additional display or control element. Here too, less is more.

For the trekking e-bike, which is available in two frame shapes, all components were selected with a view to purist design. The TC-E combines a sporty character with great everyday practicality. The proven Shimano Deore with 10 gears offers the best shifting performance, the aluminium frame ensures top riding characteristics through high rigidity. Comfort is provided by Schwalbe Energizer Active Plus tyres, a saddle from Selle Royal and the multiple award-winning GP1 grips from Ergon.

Disc brakes from Shimano decelerate precisely and ensure safe handling. The LED lighting system by Herrmanns (front) and Busch & Müller (rear), the practical Racktime luggage rack and SKS mudguards with edge protectors complete the TC-E's equipment suitable for everyday use.



Find out more about Rabeneick e-bikes with the invisible E - click here!

* Actual product colours may differ for technical reasons.

Specs

Frame
Aluminum 6061, 28" Trekking Comfort
Frame size
Diamant 28": 50, 55, 60 cm
Trapez 28": 50, 55 cm
max load
140 kg
Colour
black matt
Headset
Chin Haur, 1 1/8” semi-integrated
Fork
28" aluminum,
Rear derailleur
Shimano Deore RD-M4120, 10-speed
Front derailleur
N.V.
Break
Radius BH-M960 (front 160 mm / rear 160 mm) Disc brake
Headlights
Herrmans MR8-E, 60 LUX including standinglight
Rear light
Busch & Müller integrated in the carrier, including standinglight
Luggage rack
Racktime Shine Evo Tour, with spring flap
Saddel
Selle Royal Essenza
Seat pillar
Kalloy SP-DC1, patent, aluminum, 31,6 mm, 300 mm
Pedal
Marwi SP-811
Stand
Pletscher Comp Zoom, rear kickstand
Chain guard
Hebie Chainglider open
Mudguard
SKS, plastic
Weight
20,9 kg
Stems
Humpert Ergotec Octopus, angle adjustable
Handlebar
Humpert Ergotec Ladytown, 620 mm
Handlebar grip
Ergon GP1, with clamp
Gearshift
Shimano Deore SL-M4100, 10-speed, with gear display
Break lever
Radius BH-M960, 3-finger brake lever
Tyres
Schwalbe Energizer Active Plus, 47-622, reflex
Spoke wheel
Niro 2,0 mm, black
Front wheel grain
Joytech, 36 holes
Rear hub
Bafang G20, 36 holes
Gear rim
Shimano Deore CS-M4100, 10-speed, 11-42 teeth
Chain
KMC E10 EPT
Bottom bracket
Bafang with torque sensor
Crankset
Miranda aluminum, 170 mm
Translation (front : back)
42 teeth : 11-42 teeth
Show all specs + Show less specs
